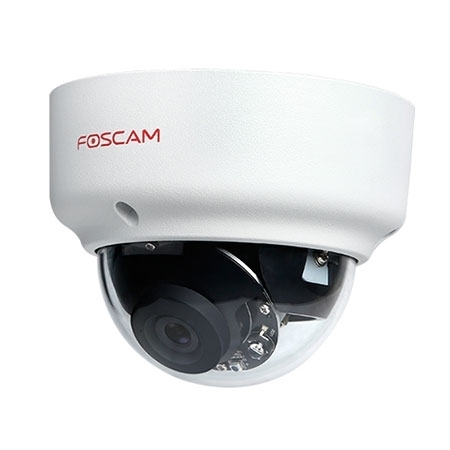

Name FI9961EP
Version V2.0 and above V1.0
Sensor High Definition Color CMOS Sensor
Display Resolution 2.0 megapixel (1920x1080)
Min. Illumination 0 Lux (with IR Illuminator)
Lens Type Glass lens
Focal Length f:2.8mm f:4.0mm
Aperture F:2.0 F:2.0
Angle of view Horizontal:100°, Diagonal :107° Horizontal:68°, Diagonal :76°
Image Compression H.264
Image Frame Rate 25fps(50Hz), downward adjustable
Resolution 1080P (1920x1080), 720P (1280x720), VGA(640x480), QVGA (320x240)
Stream Dual stream
Image Adjustment The hue, brightness, contrast, saturation and sharpness are adjustable
Flip Image Flip and mirror
Infrared Mode Automatic or manual
Night Visibility With infrared array LEDs, IR Range up to 66 feet (20 meters)
Input/Output External TRS interface for two-way audio
Audio Compression PCM/G.726
Ethernet One 10/100Mbps RJ45 port
Remote Access P2P DDNS
Network Protocol IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP, ONVIF
Operating System Microsoft Windows 2000/XP, Vista, 7,8; Mac OS
Browser Microsoft IE8 and above versions or compatible browser; Apple Safari
Motion Detection Alarm via email, upload alarm snapshot to FTP
Privacy Block Set privacy area manually
User Account Three-level user role
Firewall Supports IP filtering
Reset Reset button is available
Power Supply DC 12V/1.0A
Power Consumption <4.5W
Dimensions (LxWxH) 112.5x112.5x88mm (4.4"x4.4"x3.5")
Net Weight 700g
Waterproof IP66
Vandal-Proof IK10
Operating Temperature -10°C~60°C (14°F ~ 140°F)
Operating Humidity 10%~80% (non-condensing)
Storage Temperature -20°C~60°C (-4°F~140°F)
Storage Humidity 0%~90% (non-condensing)
Certification CE, RoHS, FCC, IC,IP66
